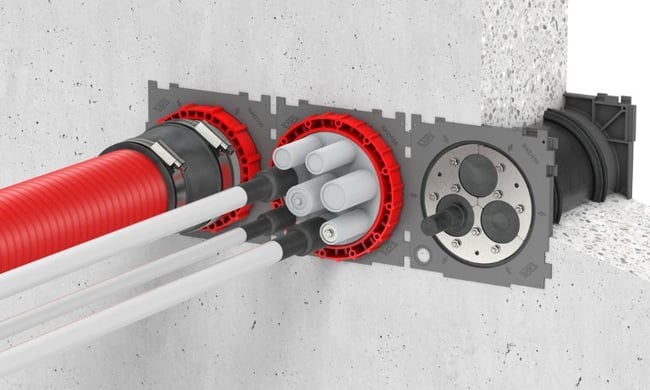

    The BKD 150 system from UGA - system covers and inserts

    Sealing cables in no time at all. The bayonet mount of the BKD 150 system allows quicker connection of system covers or cable conduits to the wall insert. And a reliable sealing is already established.

    There is no easier way to seal cables. Thermo-shrink sleeves TM are supplied as standard with the system covers. Cold shrink sleeves KS are available as an option.
    Our products

    BKD 150-SYSTEM – system covers and inserts

    BKD 150-SYSTEM

    Blind cover BKD150-D

    Stay flexible when plans change: A blind cover is included with all BKD150 cable entries. This allows you to retrofit your wall insert with a gas- and watertight seal.

    • Blind plug for BKD150 wall inserts
    • GSS key required for assembly
    • Test certificate: Lloyd's Register
    watertight
    Gas- and watertight
    up to 2.5 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    You need a GSS spanner (order no. GSS) to fit the blind cover.

    Downloads

    BKD 150-SYSTEM

    System cover for substations BKD150-D-3/59(3/3)-FHE60/400-TM

    Seal substations safely and conveniently. For this purpose, this system cover includes 3 curved and flexible cable protection conduits for cables with a diameter of 22 - 57 mm - ideal for concreted-in wall inserts in angled walls. Thanks to the hot-shrink sleeves, the spiral conduits are gas- and watertight up to 2.5 bar.

    • System cover with 3 flexible cable protection tubes
    • Sealing of 3 cables with 22 - 57 mm diameter
    • GSS spanner and hot air gun required for assembly
    watertight
    Gas- and watertight
    up to 2.5 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    BKD 150-SYSTEM

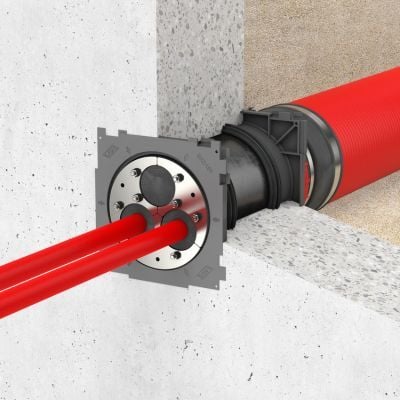

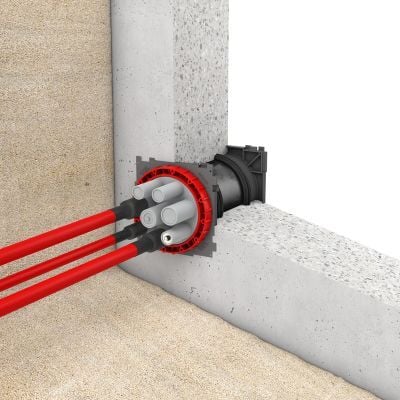

    System cover with hot-shrink sleeve BKD150-D/TM

    Quick and easier to install - and immediately pressure-tight afterwards: Depending on the variant, this system cover fits up to 8 cables and pipes with a diameter of 7 - 108 mm. Precisely fitting hot-shrink sleeves reliably seal media cables with larger clamping ranges. Cold-shrink sleeves are also available on request.

    • 5 variants for up to 8 cables / pipes in 7 - 108 mm
    • Precisely fitting hot-shrink sleeves for immediate sealing after installation
    • Double security through bayonet and screw connection
    watertight
    Gas- and watertight
    up to 2.5 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    Depending on the variant (see product data sheet), the cover is equipped with various protruding pipe sleeves and hot-shrink sleeves. Some are sealed and you can break through these as required. The bayonet connection and a screw connection secure the system cover twice. For this you need a GSS spanner (order no. GSS) and a torque spanner.

    Downloads

    BKD 150-SYSTEM

    System cover with collar BKD150-D-MA(A1-A2)

    Your choice when you want to tie a pipe or flexible cable conduit: Thanks to a wide range of sleeves, you can connect smooth walled pipes and corrugated pipes with a diameter of 40 - 170 mm. High-quality tension straps provide the necessary hold. The cover itself is double-secured.

    • Collar for connecting pipes with 40 - 170 mm diameter
    • 2 high-quality tensioning straps for secure fixation
    • Double securing by bayonet and screw connection
    watertight
    Gas- and watertight
    up to 0.5 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    The sleeve is made of EPDM rubber. You can choose from different variants with different diameters. The bayonet connection and a screw connection secure the system cover twice. For assembly, you need a GSS spanner (order no. GSS) and a torque spanner.

    Downloads

    BKD 150-SYSTEM

    Multilayer insert BKD150-E-ZS

    If you want to retrofit existing cables and pipes with sealing, this insert is your solution: Thanks to the multilayer technology, you can adapt the system insert flexibly and directly on site - because of its division, this is easy. The insert fits up to 10 cables or pipes with a diameter of 4 - 110 mm.

    • Sealing of 10 cables / pipes between 4 - 110 mm
    • Various inserts for flexible adaptation on site
    • Sealing of already laid cables and pipes possible
    watertight
    Gas- and watertight
    up to 2 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    For retrofitting the sealing: With the system insert, you do not incur any additional costs for drilling. You can choose from 4 different inserts for your requirements: for 3, 6 or 9 cables or for 4 plus 6 cables - all in split design. Thanks to the integrated bayonet lock, you can easily mount the insert in your BKD150 system.

    Downloads

    BKD 150-SYSTEM

    System insert with interchangeable insert BKD150-E-WE

    Also fits your requirements: We manufacture the interchangeable insert made of rubber individually for you so that it reliably seals your cable situations. Another advantage: you can also retrofit and install the insert - for maximum flexibility.

    • Individual manufacturing for numerous cable situations
    • Insert made of EPDM rubber retrofittable
    • Sealing of already laid cables and pipes possible
    watertight
    Gas- and watertight
    up to 2 bar
    haken-mit-kreis-icon
    Lloyd's
    Register

    For retrofitting the sealing: With the system insert, you do not incur any additional costs for drilling. Thanks to the integrated bayonet lock, you can easily mount the insert in your BKD150 system. Different versions are available: for example, 1 cable with 110 mm diameter, 3 with 43 mm, 5 with 34 mm or 9 with 24 mm.

    Downloads

    Tender texts

    Tender texts for your specifications - quick and easy download. We provide you with our product information as tender specifications. Via Ausschreiben.de you will find over 1 million tender specifications from over 550 manufacturers.

    BKD 90-System

    Same system, different size. The bayonet mount of the BKD 90 system enables quicker connection of system covers or cable conduits to the wall insert. There is no easier way to seal cables.

    Customized solutions

    We are by your side!

    Often, pragmatic solutions are required on construction sites to make cables and pipelines gas- and water-tight. Where standard solutions no longer suffice, UGA supplies suitable customized solutions.

    Benefit from our many years of experience, unique service and fast delivery times. We accompany you in your project from planning to implementation.
