    The BKD 150 system from UGA - wall inserts

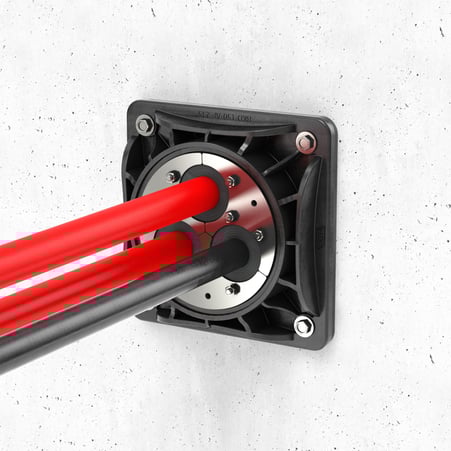

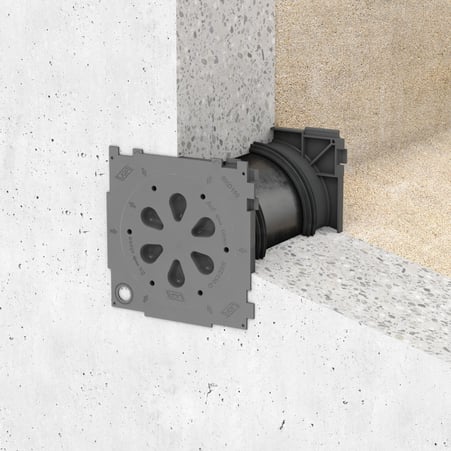

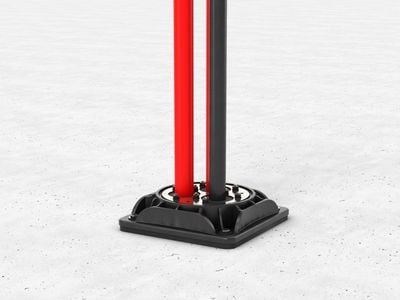

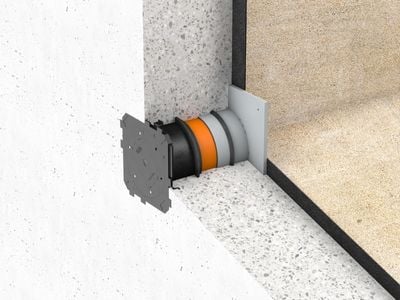

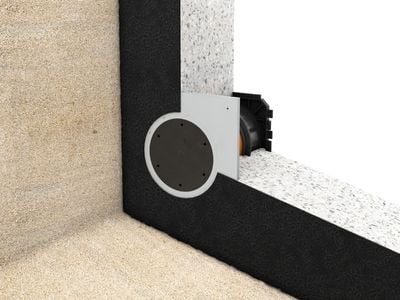

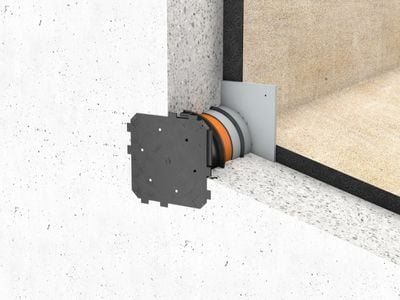

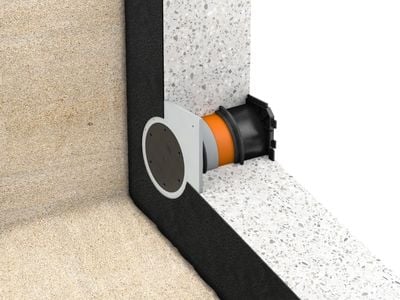

    Sealing cables in no time at all. The bayonet mount of the BKD 150 system allows quicker connection of system covers or cable conduits to the wall insert. And a reliable sealing is already established.

    There is no easier way to seal cables. Thermo shrink sleeves TM are supplied as standard with the system covers. Cold shrink sleeves KS are available as an option.
    Our products

    BKD 150-SYSTEM – wall inserts

    BKD 150-SYSTEM

    Single wall insert BKD150-K

    Quicker in the wall and money saved: The one-sided connection for system covers or inserts leaves all options open to you. You stay on the safe side with the supplied blind plug, because the packing is already gas-tight and pressurised water-tight after concreting - even without finishing.

    • One-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    • Easy bundling possible by plugging together
    watertight
    Gas- and watertight
    up to 2.5 bar
    wandstaerke-icon
    Wall thicknesses from
    100 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    Well planned for you from beginning to end: The supplied system cover (blind plug) and the dirt cover for the rear (non-connection side) keep the interior clean during installation. This makes the wall insert gas- and water-pressure-tight from day one. Your wall is thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Double wall insert BKD150-K2

    Quick in the wall and doubly secured: With 2 connections for system covers or inserts, you have maximum flexibility. You stay on the safe side with the supplied blind plugs, because the packing is already gas- and water-pressure-tight after concreting - even without finishing.

    • Two-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    • Easy bundling possible by plugging together
    watertight
    Gas- and watertight
    up to 2.5 bar
    wandstaerke-icon
    Wall thicknesses from
    100 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    WWell thought out for you from front to back: The 2 system covers (blind plugs) keep the interior clean during installation. This makes the wall insert gas- and water-pressure-tight from day one. Your wall is thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Double wall insert for double or element walls BKD150-K2-EW

    Due to the additional rubber seal in the middle, this double wall insert is also suitable for double or element walls. With 2 connections for system covers or inserts, you have maximum flexibility. After concreting, the packing is gas- and water-pressure-tight - even without finishing.

    • For double or element walls due to additional sealing rubber
    • Two-sided connection of system covers or system inserts
    • Easy bundling possible by plugging together
    watertight
    Gas- and watertight
    up to 2.5 bar
    wandstaerke-icon
    Wall thicknesses from
    100 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    Well planned for you from beginning to end: The supplied system cover (blind plug) and the dirt cover for the rear (non-connection side) keep the interior clean during installation. This makes the wall insert gas- and water-pressure-tight from day one. Is your wall thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Assembly flange BKD150-AF-235/BE

    It is easy to retrofit the assembly flange to a core drilling or wall opening up to a maximum diameter of 150 mm. Depending on your budget, you can choose fixings made of stainless steel (V4A) or in a less expensive galvanised version.

    • Retrofitting to core drillings up to 150 mm
    • One-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    watertight
    Gas- and watertight
    up to 2.5 bar
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    BKD 150-SYSTEM

    Angular wall insert BKD150-K-S

    For every angle of your project: reliably seal angled penetrations at angles of 30°, 45° and 60°. Thanks to the polystyrene wedge and steel frame, fixing for installation is particularly easy. The one-sided connection for system covers or inserts leaves all options open to you. After concreting, the packing is gas- and water-pressure-tight.

    • Angled penetration at 30°, 45° and 60°.
    • One-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    watertight
    Gas- and watertight
    up to 2.5 bar
    wandstaerke-icon
    Wall thicknesses from
    200 - 500 mm

    Well planned for you from beginning to end: The supplied system cover (blind plug) and the dirt cover for the rear (non-connection side) keep the interior clean during installation. This means that the wall insert and your wall are gas- and water-pressure-tight from day one. Bundling is possible by easy plugging together. Is your wall thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Angular wall insert BKD150-K2-S

    For every angle of your project: Double seal angled penetrations at 30°, 45° and 60°. Thanks to the polystyrene wedge and steel frame, fixing for installation is particularly easy. With 2 connections for system covers or KSS systems, you have maximum flexibility. After concreting, the packing is gas- and water-pressure-tight.

    • Angled penetration at 30°, 45° and 60°
    • Two-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    watertight
    Wall thicknesses from
    bis 2,5 bar
    wandstaerke-icon
    Wall thicknesses from
    240 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    Well planned for you from beginning to end: The supplied system cover (blind plug) and the dirt cover for the rear (non-connection side) keep the interior clean during installation. This means that the wall insert and your wall are gas- and water-pressure-tight from day one. Bundling is possible by easy plugging together. Is your wall thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Single wall insert with collar BKD150-K-MA

    Easy elastic tying: You can connect empty conduits or flexible cable conduits with the help of a sleeves. The one-sided connection for system covers or inserts leaves all options open to you. After concreting, the packing is gas- and water-pressure-tight - even without finishing.

    • One-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    • Easy bundling possible by plugging together
    watertight
    Gas- and watertight
    up to 0.5 bar
    wandstaerke-icon
    Wall thicknesses from
    200 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    You can fix smooth walled pipes or corrugated pipes with an outer diameter of 110 - 170 mm with 2 tensioning straps. The supplied dirt cover for the rear (non-connection side) keeps the interior clean during installation. Is your wall thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Single wall insert with pipe connection sleeveBKD150-K-SM

    Connected in no time at all: With the help of a pipe fitting, you can connect smooth walled cable conduits. The one-sided connection for system covers or inserts leaves all options open to you. After concreting, the packing is gas- and water-pressure-tight.

    • One-sided connection of system covers or system inserts
    • Quick assembly in waterproof concrete structures (class 1 and 2)
    • Easy bundling possible by plugging together
    watertight
    Gas- and watertight
    up to 0.5 bar
    wandstaerke-icon
    Wall thicknesses from
    200 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    Choose from 3 different versions for pipes with 110, 125 or 160 mm outer diameter. The supplied dirt cover for the rear (non-connection side) keeps the interior clean during installation. Is your wall thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Angular wall insert with collar BKD150-K-S-MA

    Elastic connection at any angle: With the help of a sleeve, you can connect empty conduits or flexible cable conduits to angled penetrations. The one-sided connection for system covers or inserts leaves all options open to you. After concreting, the packing is gas- and water-pressure-tight.

    • Angled penetration at 30°, 45° and 60°.
    • One-sided connection of system covers or system inserts
    • 2 high-quality tension straps for secure fixation
    watertight
    Gas- und wasserdicht
    bis 0,5 bar
    wandstaerke-icon
    Wanstärken von
    200 - 500 mm
    haken-mit-kreis-icon
    Frauenhofer
    Institut

    You can fix smooth walled pipes or corrugated pipes with an outer diameter of 110 - 170 mm with 2 tensioning straps. The supplied dirt cover for the rear (non-connection side) keeps the interior clean during installation. Bundling is possible by easy plugging together. Is your wall (waterproof concrete class 1 and 2) thicker than 500 mm? Just get in touch with us!

    Downloads

    BKD 150-SYSTEM

    Double wall insert with adhesive flange BKD150-K2-KF-W1/PVC

    Seal openings in the black trough according to DIN 18533: The circumferential PVC adhesive flange is suitable for liquid manufacture sealants and non-pressing (W1) or moderately pressing water (W2.1-E). With 2 connections for system covers or KSS systems, you have maximum flexibility.

    • For black trough with liquid manufacture sealants according to DIN 18533
    • Two-sided connection of system covers or system inserts
    • Individual arrangement of the wall insert before production
    watertight
    Gas- and watertight
    up to 1 bar
    wandstaerke-icon
    Wall thicknesses from
    200 - 500 mm
    haken-mit-kreis-icon
    MFPA
    Leipzig

    With the circumferential 50 mm adhesive flange made of PVC, you can bond thick coatings (PMBC, black trough) in a gas- and watertight manner. This wall insert can be used for waterproofing materials to be manufactured in liquid form in accordance with DIN 18533 for water action class W2.1-E. Integrated concrete anchors securely fix the product in your structure.

    Downloads

    BKD 150-SYSTEM

    Double wall insert with fixed and loose flange BKD150-AF-NA-F+L-W(1/2)

    Seal openings in the black trough according to DIN 18533: It is easy to retrofit the mounting flange to a core drilling or wall opening in the waterproofing membrane - ideal for your retrofitting project. The fixed and loose flange design is suitable for non-pressing (W1) or pressing water (W2).

    • Retrofitting in the black trough
    • One-sided connection of system covers or system inserts10 mm
    • rubber flange seal
    watertight
    Gas- and watertight
    up to 1 bar

    With the supplied dowel set, the M20 bolts for pressing water (W2) and the PE protective cover, you seal the opening gas- and watertight up to 1 bar. Bundling is possible, we can also design a solution for individual openings on request.

    Downloads

    Tender texts

    Tender texts for your specifications - quick and easy download. We provide you with our product information as tender specifications. Via Ausschreiben.de you will find over 1 million tender specifications from over 550 manufacturers.

    Assembly instructions

    Installation instructions for concreting wall inserts.

    Montageanleitung_positiv-png
